HH54P electromagnetic power relay

The mini relays specially designed for users demanding small size, sturdy construction and high electrical capacity. Mechanisms are furnished in polycarbonate dust-proof enclosures and are recommended for a multitude of electrical control applications for their reliability and compact size.Continuous duty coils, either AC or DC are available for voltages up to 240V AC or 120V DC. Continuous current ratings are 3, 5 and 7 Amps.

Coil Voltage:5VDC~110VDC; 6VAC~240VAC
Coil Power(W):0.9W, AC:1.2VA
Contact capacity:5A 220VAC/5A 28VDC
Contact resistance:50m
Insulation resistance:100M
Dielectric strength:BOC 1000VAC/BCC 1500VAC
Temperature Range:-40C~70C
Number of Terminals : 14;
Shell Material : Plastic

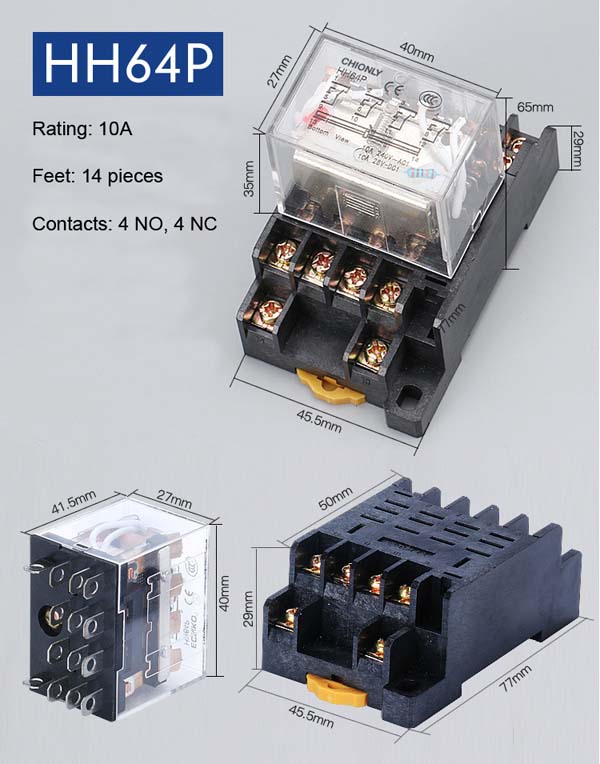

Size: approx. 27*40*41.5mm
Fit Socket Model No. : PTF14A


Appearance
Characteristic







Details
