HH62P (JQX-13F) electromagnetic power relay
The miniature general purpose relays specially designed for users demanding small size, sturdy construction and high electrical capacity. Mechanisms are furnished in polycarbonate dust-proof enclosures and are recommended for a multitude of electrical control applications for their reliability and compact size.Continuous duty coils, either AC or DC are available for voltages up to 240V AC or 120V DC. Continuous current ratings are 3, 5 and 7 Amps.
Coil Voltage:5VDC~110VDC; 6VAC~240VAC
Coil Power(W):0.9W, AC:1.2VA
Contact capacity:5A 220VAC/5A 28VDC
Contact resistance:¡Ü50m¦¸
Insulation resistance:¡Ý100M¦¸
Dielectric strength:BOC 1000VAC/BCC 1500VAC
Temperature Range:-40¡ãC~70¡ãC
Number of Terminals : 8;
Shell Material : Plastic

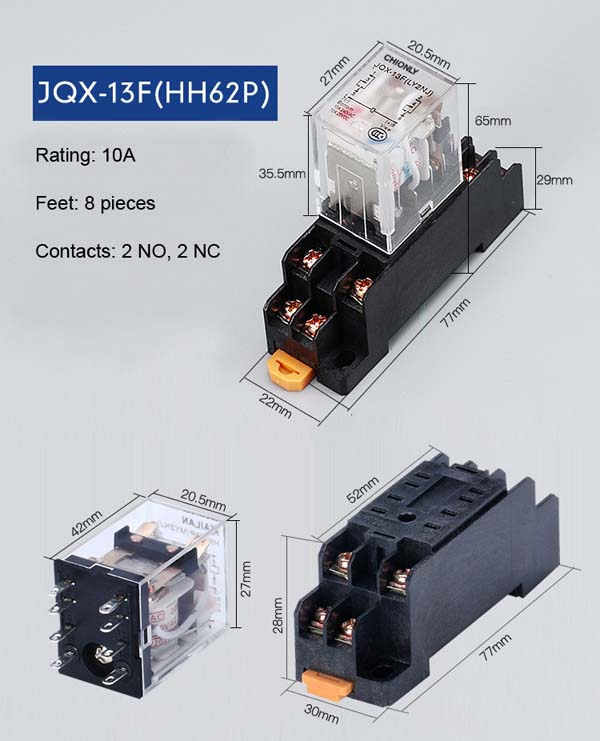

Size: approx. 27*20.5*42mm
Fit Socket Model No. : PYF08A
|
