HH54P electromagnetic power relay

The HH52, 53 and 54 are a series of miniature general purpose relays specially designed for users demanding small size, sturdy construction and high electrical capacity. Mechanisms are furnished in polycarbonate dust-proof enclosures and are recommended for a multitude of electrical control applications for their reliability and compact size.Continuous duty coils, either AC or DC are available for voltages up to 240V AC or 120V DC. Contacts can be supplied in 2PDT, 3PDT, 4PDT arrangements. Continuous current ratings are 3, 5 and 7 Amps.

Coil Voltage:5VDC~110VDC; 6VAC~240VAC
Coil Power(W):0.9W, AC:1.2VA
Contact capacity:5A 220VAC/5A 28VDC
Contact resistance:50m
Insulation resistance:100M
Dielectric strength:BOC 1000VAC/BCC 1500VAC
Temperature Range:-40C~70C
Number of Terminals : 14;
Shell Material : Plastic

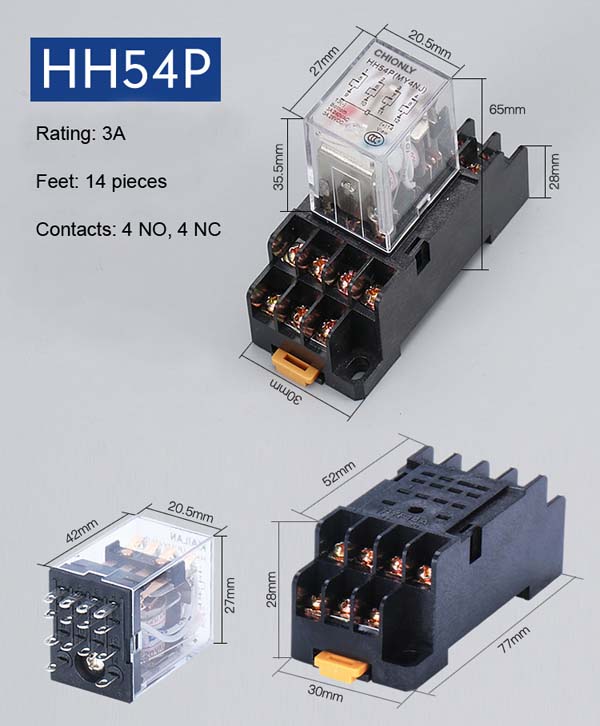

Size: approx. 27*20.5*42mm
Fit Socket Model No. : PYF14A


Appearance
Characteristic





Details
