MC1 series Electric Vehicle Circuit Breaker

It widly use for High-power electric lithium battery, Solar photovoltaic, Wind power, New Energy Vehicles and other DC power distribution equipment system for the overload protection and sort-circuit protection

Connection method: screw

Rating Voltage: DC12v ~500v

Rating Current: 80A / 100A / 125A / 200A / 250A / 300A / 400A/ 500A / 600A

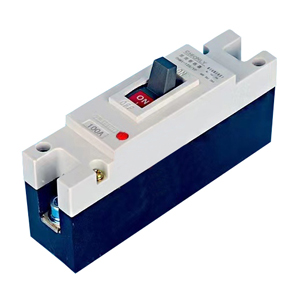

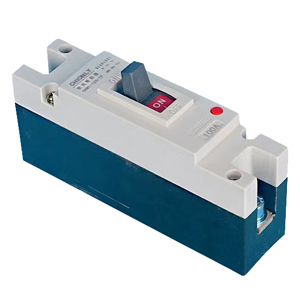

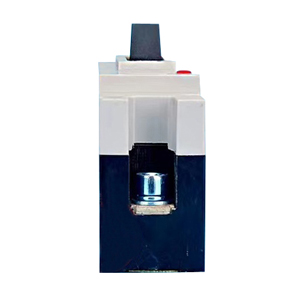

Appearance

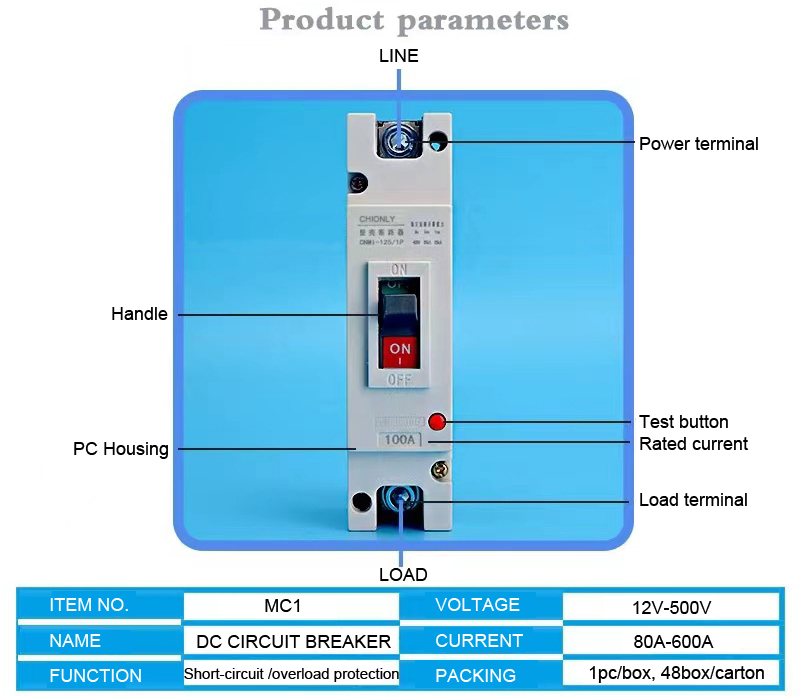

Characteristic

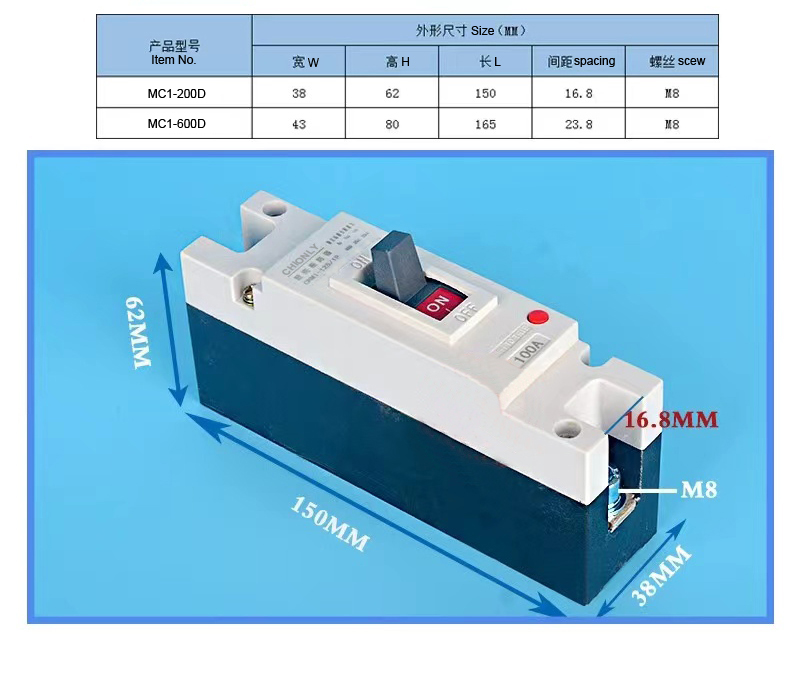

MC1 Series Dimension

1.The ambient temperature does not exceed 40C and not be lower than -5C. And the 24-hour average temperature does not exceed 35C.

2.The elevation of the installation point shall not exceed 2000 meters.

3.Atmospheric relative humidity doesn't exceed 50% when the ambient air temperatures is 40C. Special measures should be taken for occasional condensation on products due to temperature changes.

4.Pollution class II.
